無線對刀儀對刀精度0.01mm；
適用于維宏系統、德國西門子、日本三菱、法那科、臺灣寶元、新代、華中數控等等系統
一. 應用 Application

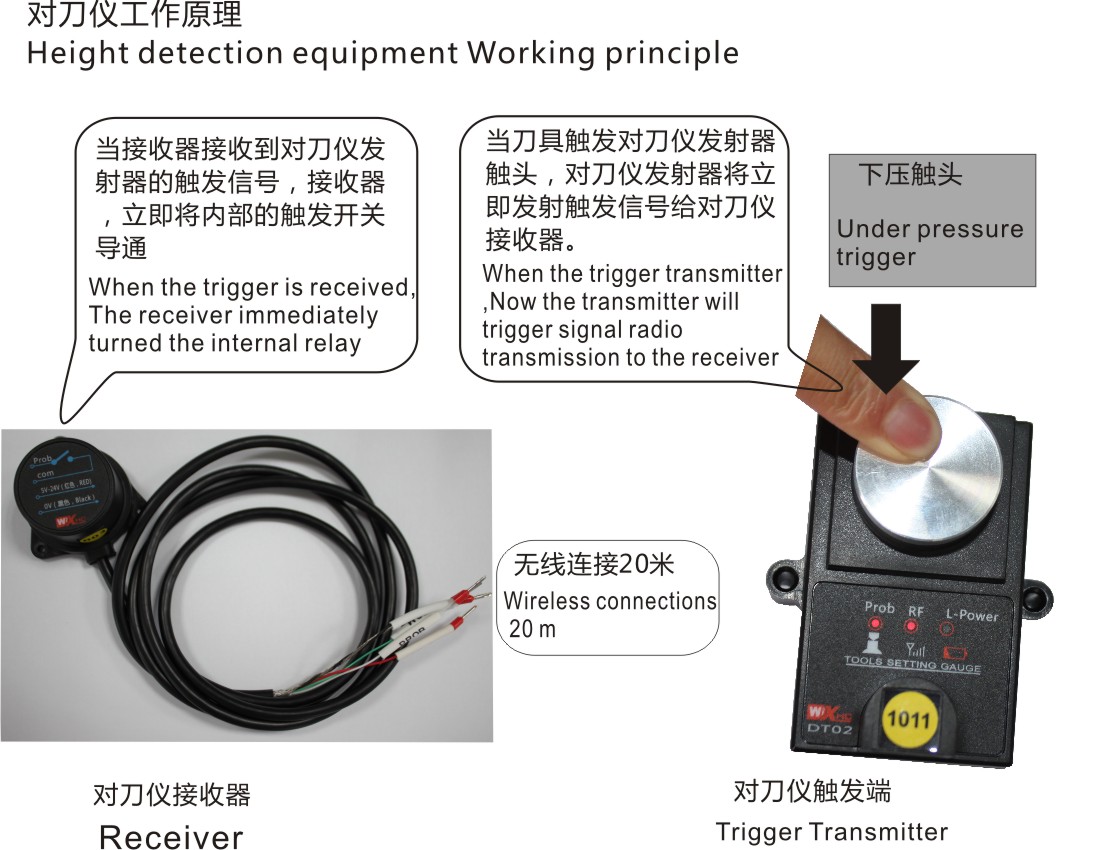

低功耗無線對刀儀,實用于各種CNC加工中心.
low-power wireless tool setting gaguge, applications operating in all kinds of machine cnc center.
.jpg)
二． 操作使用步驟說明 Operation Instruction

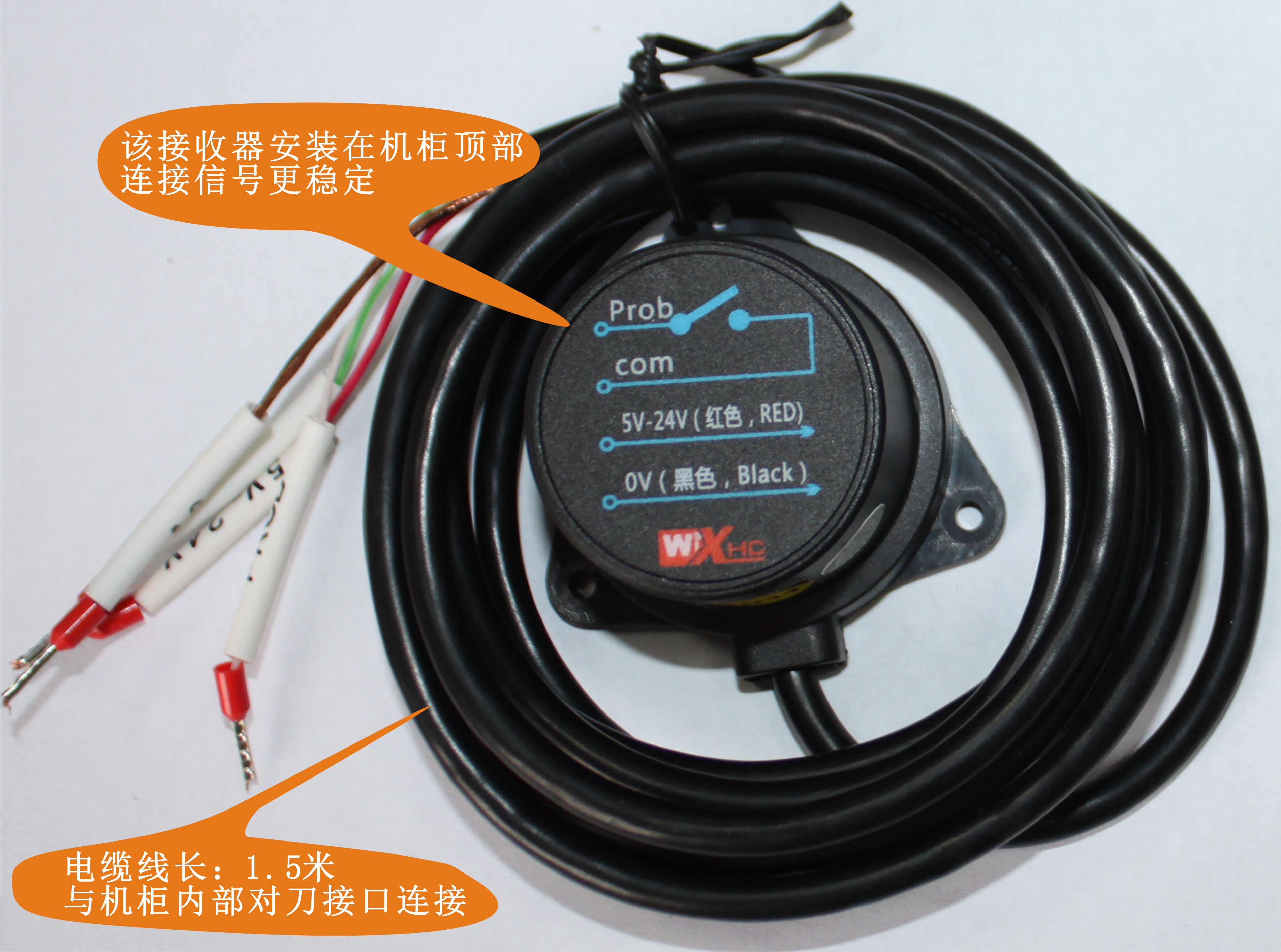

1．將接收器連接到系統，如下說明：（接收器）Connect the receiver to the cnc system
.jpg)

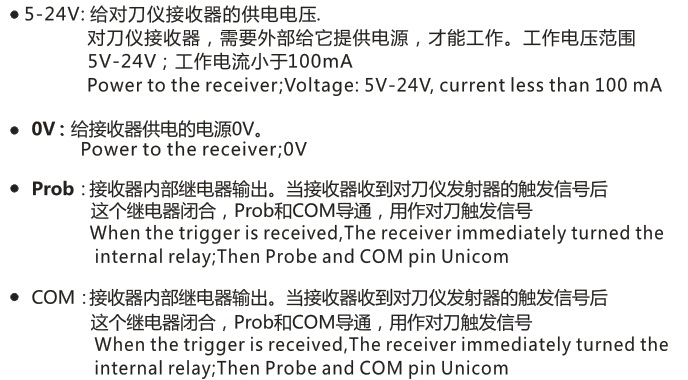

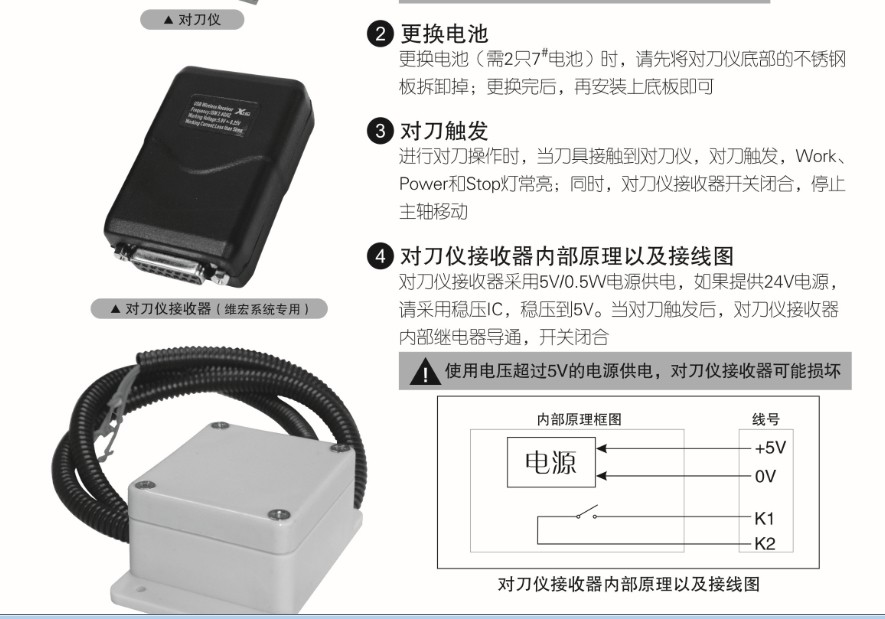

接收器信號說明The receiver pin configuration :
.jpg)
說明：description
1、Prob為內部繼電器輸出的2個腳，平時Prob處于斷開狀態，當對刀觸發的時候，Prob閉合。
Prob is the electric relay output normal open switch,which will be closed when the probe signal is triggered.
2、給接收器供電：接收器支持5V到24V的電壓輸入。
當接收器有電壓輸入后，接收器開始工作，接收器的工作指示燈閃爍。
Power on the receiver.please make sure that the input power is 5v-24v DC. The work led flash to indicate power on ok.

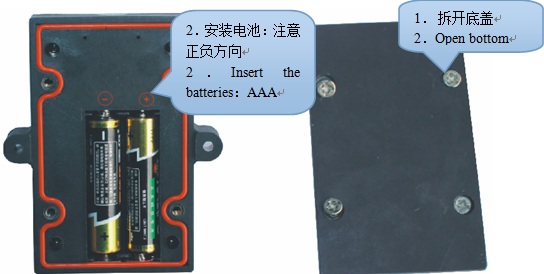

3、給對刀器安裝上2節AAA電池。
拆開對刀器底蓋------安裝上2節AAA電池（注意電池正負方向）------裝上對刀器底蓋
Install the two AAA batteries to the terminal device.
Open the the battery door->install the 2 AAA.(Attention to The battery positive and negative direction )->close the battery door.
.jpg)

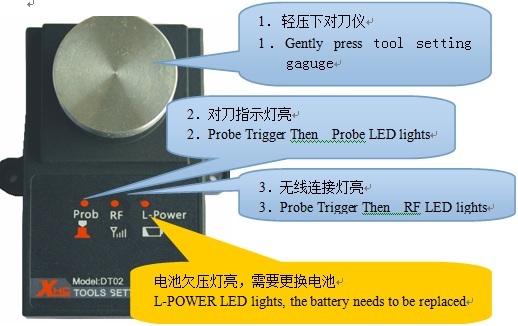

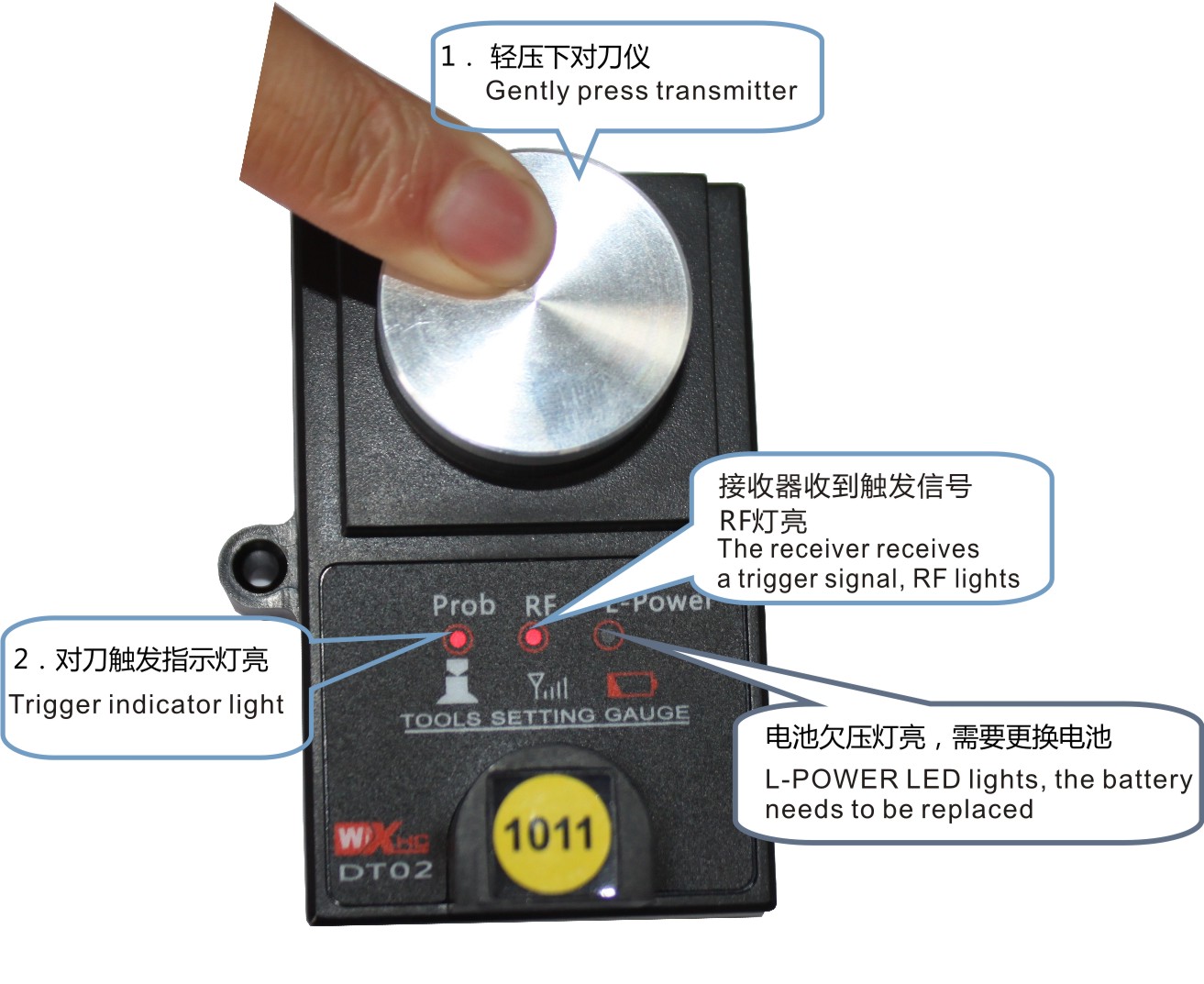

4、輕壓下對刀儀，對刀指示燈亮；同時無線連接指示燈亮；對刀儀將對刀信號無線傳遞給接收器，接收器對刀指示燈亮，對刀開關處于閉合狀態；完成對刀。
To Touch the bulge of the tool setting gauge device until the probe led and the RF Led light. the probe signal will be transferred to the receiver,the receiver will trigger the probe switch to close.
三、電氣參數 Electrical specifications
3．1：接收器（The receiver）
．工作電壓：支持寬電壓輸入：直流：5V到24V
Work voltage:5v~24DC
．工作電流：平均電流小于：20Ma
Current consumption: type 20ma
．無線使用距離：20米
Wireless distance:20 meter
．內部繼電器輸出：支持250V/50mA負載;常開型;對刀觸發,繼電器閉合.
The relay normal open contacts output: support maximum 250V/50ma load.
3．2：對刀器（The tool setting gauge）
．工作電壓：2節AAA電池，直流2.4V到3.6V
Work voltage:2 AAA batteries,2.4V~3.6V DC
．工作電流：平均電流小于20uA；2節AAA電池能正常使用6個月
Current consumption: type 20uA.To work continuously more than 6 months
．無線使用距離：20米
Wireless distance:20 meter
．對刀重復精確度：0.01毫米
Probe precision:0.01mm

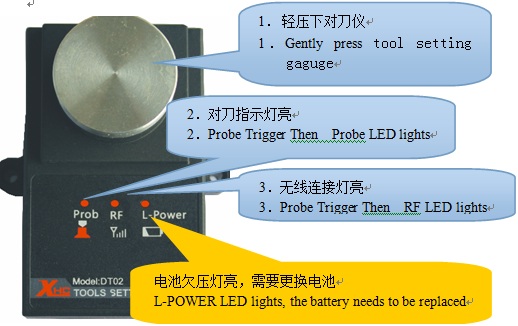

低壓警告：當對刀器電池電壓低于2.4V，提示更換電池。
Low power warning:please exchange the batteries when low power led light
